Construction and Features

Our cabinetry construction and features are what set us apart from other cabinetry companies. Our customers enjoy popular, high-end features and extensive options — all for an affordable price.

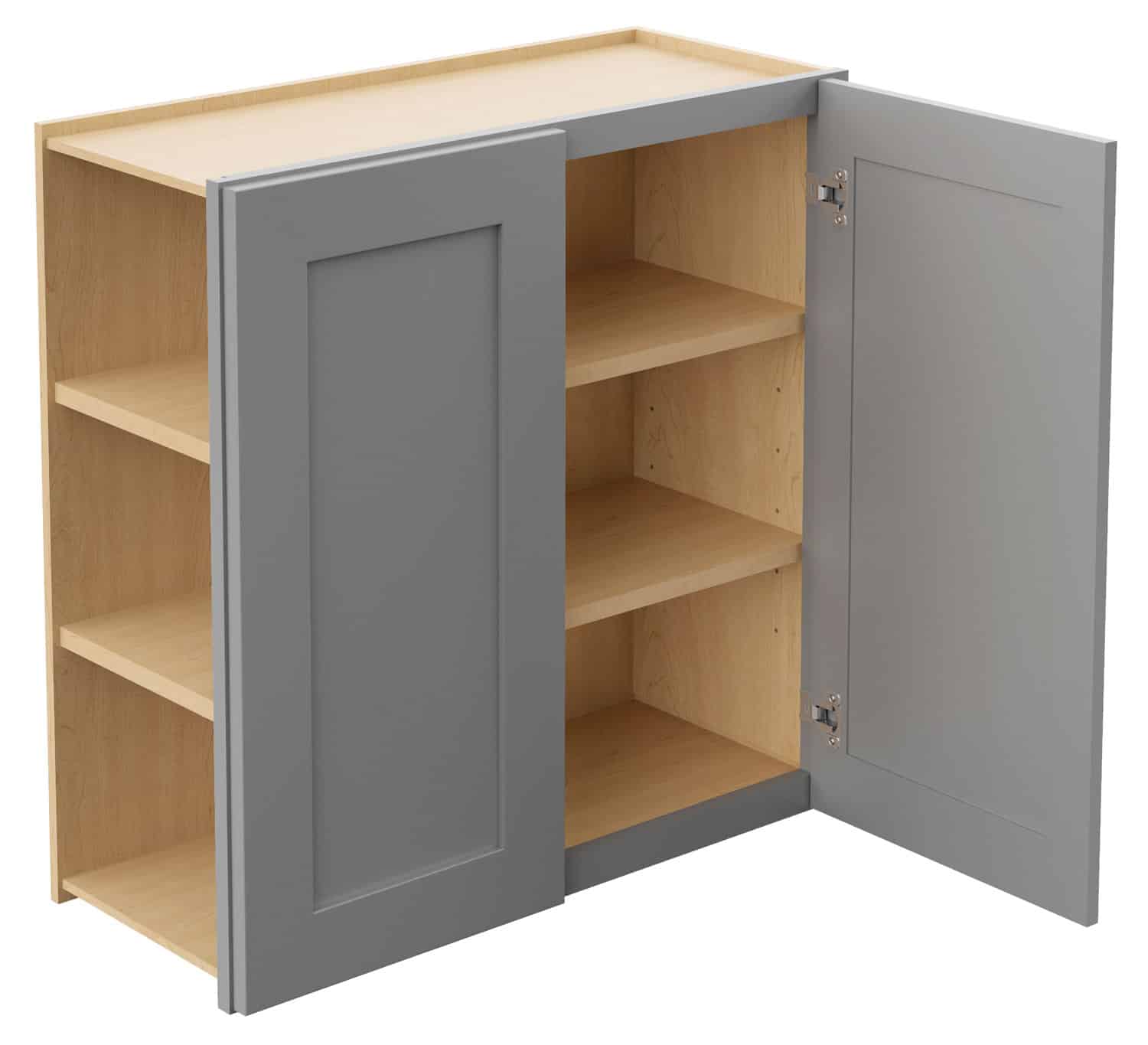

wall-cutaway
plus-symbol

Interior

  • Natural birch interior
plus-symbol

Top & Floor

  • 1/2” plywood with natural birch interior
plus-symbol

Top & Floor

  • 1/2” plywood with natural birch interior
plus-symbol

Face Frame

  • Face frame is ¾” solid wood
  • 3” Wide center stile standard on 42” Wide cabinets
  • Butt door cabinets 24-36” Wide have no center stile
plus-symbol

Back

  • 1/4” full plywood back with natural birch interior
plus-symbol

Hang Rail

  • 1/2” Plywood hanging rail behind 1/4” back
plus-symbol

Shelves

  • 3/4” birch veneer plywood
  • Adjustable 1 1/4” on center
  • Standard wall cabinets have full depth shelves
  • Standard base and vanity cabinets have one half depth shelf and are drilled for both half and full depth shelves
plus-symbol

Hinges

  • Six-way adjustable cup hinge with integrated soft close; hinge opens 108˚

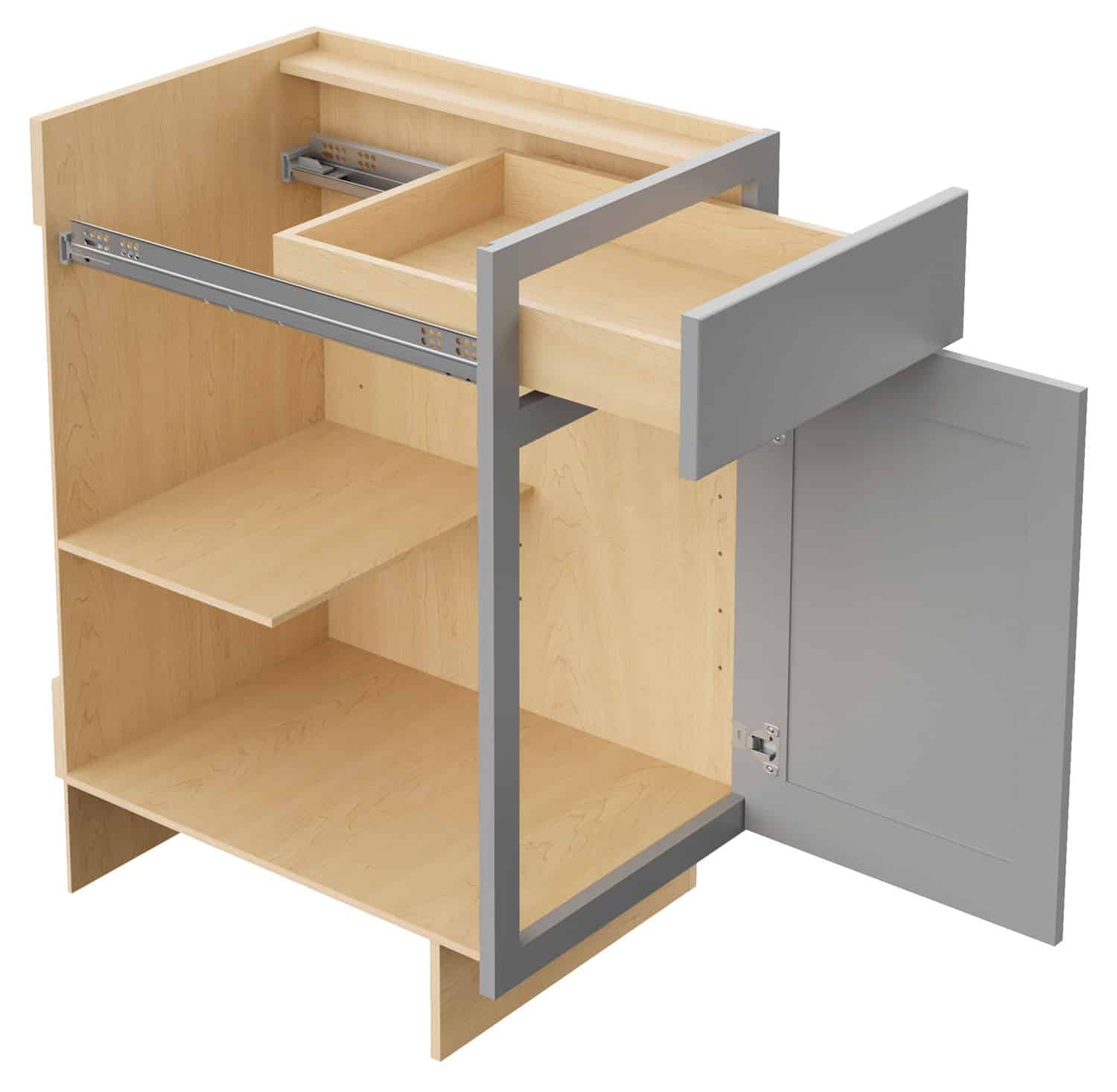

base-cutaway
plus-symbol

Side

  • 1/2” plywood with natural birch interior; 1/4” scribe
  • Sides are unfinished and do not match cabinet face. Specify finished ends for all exposed ends.
plus-symbol

Hang Rail

  • 1/2” Plywood hanging rail behind 1/4” back
plus-symbol

I-Beam Construction

  • I-Beam Construction
plus-symbol

Back

  • 1/4” full plywood back with natural birch interior
plus-symbol

Shelves

  • 3/4” birch veneer plywood
  • Adjustable 1 1/4” on center
  • Standard wall cabinets have full depth shelves
  • Standard base and vanity cabinets have one half depth shelf and are drilled for both half and full depth shelves
plus-symbol

Hinges

  • Six-way adjustable cup hinge with integrated soft close; hinge opens 108˚
plus-symbol

Drawer Box & Glides

  • 5/8" birch veneer concealed dovetail drawer box with under mount full extension soft close glides
plus-symbol

Toe Kick

  • Recessed toe is 1/2” plywood
  • Nominal toe kick size: 3 1/2” D x 4 1/2” H
  • Matching plywood toe kick material is required

Additional notes:

Single door cabinets will be hinged left unless specified on order.

Standard Depths & Heights:

  • Wall: 12” Deep
  • Base: 24” Deep / 34 1/2″ High
  • Tall: 24” Deep
  • Vanity: 21” Deep / 34 1/2” High

Universal Design:

  • Base: 24” Deep x 32 1/2″ High
